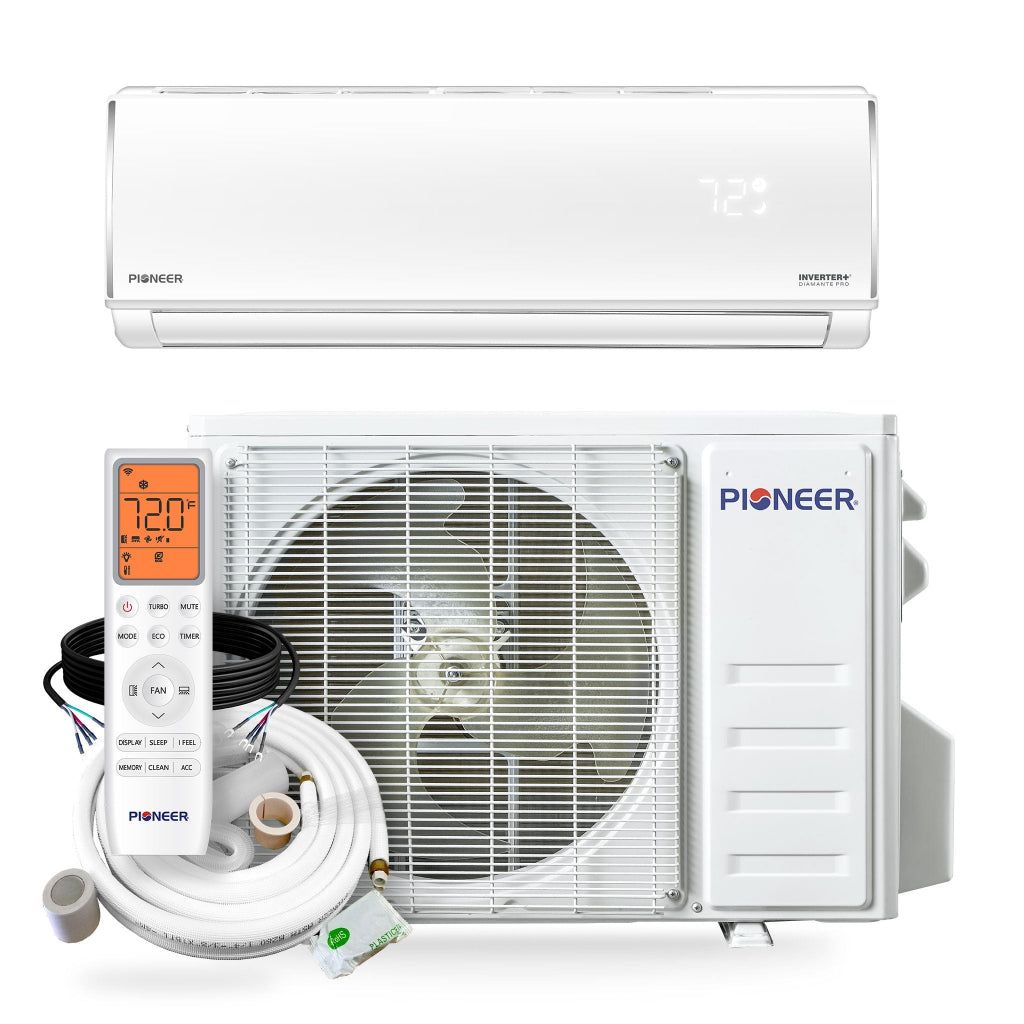

Pioneer Diamante Pro™ 9,000 BTU 20 SEER2 High-Wall Ductless Mini-Split Heat Pump System
Choose options
Pioneer Diamante Pro™ 9,000 BTU 20 SEER2 High-Wall Ductless Mini-Split Heat Pump System
High-Efficiency Architectural Climate Control for Tiny Homes, ADUs & Compact Luxury Living
Overview
The Pioneer Diamante Pro™ 9,000 BTU Mini-Split System delivers quiet, energy-efficient heating and cooling for compact architectural spaces, off-grid structures, ADUs, wellness rooms, and modern small-footprint living environments. Designed around inverter-driven performance and high-efficiency heat pump technology, this premium ductless climate system balances comfort, efficiency, and installation flexibility in a refined wall-mounted format.
With 20 SEER2 cooling efficiency, low-ambient heating performance down to -4°F, and environmentally conscious R454b refrigerant, the Diamante Pro™ is engineered for year-round comfort across diverse climates and living applications.

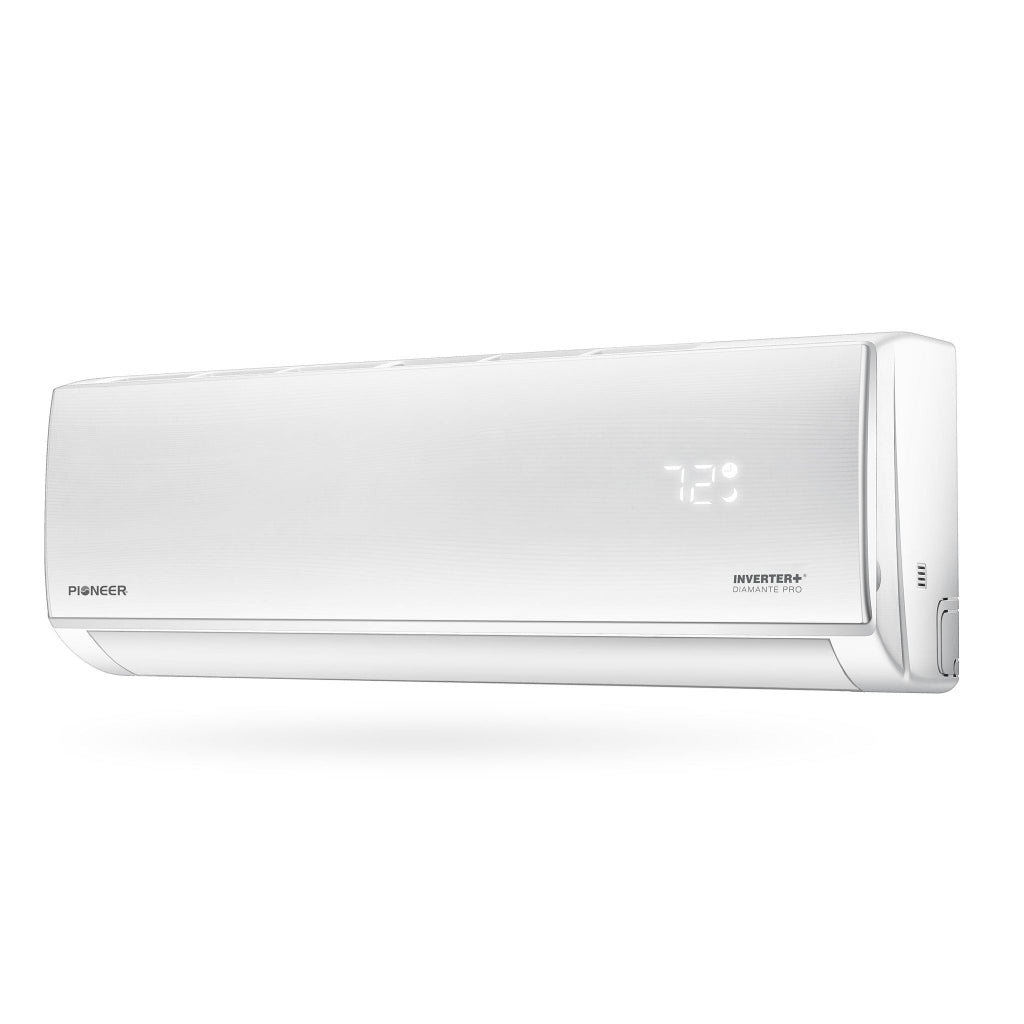

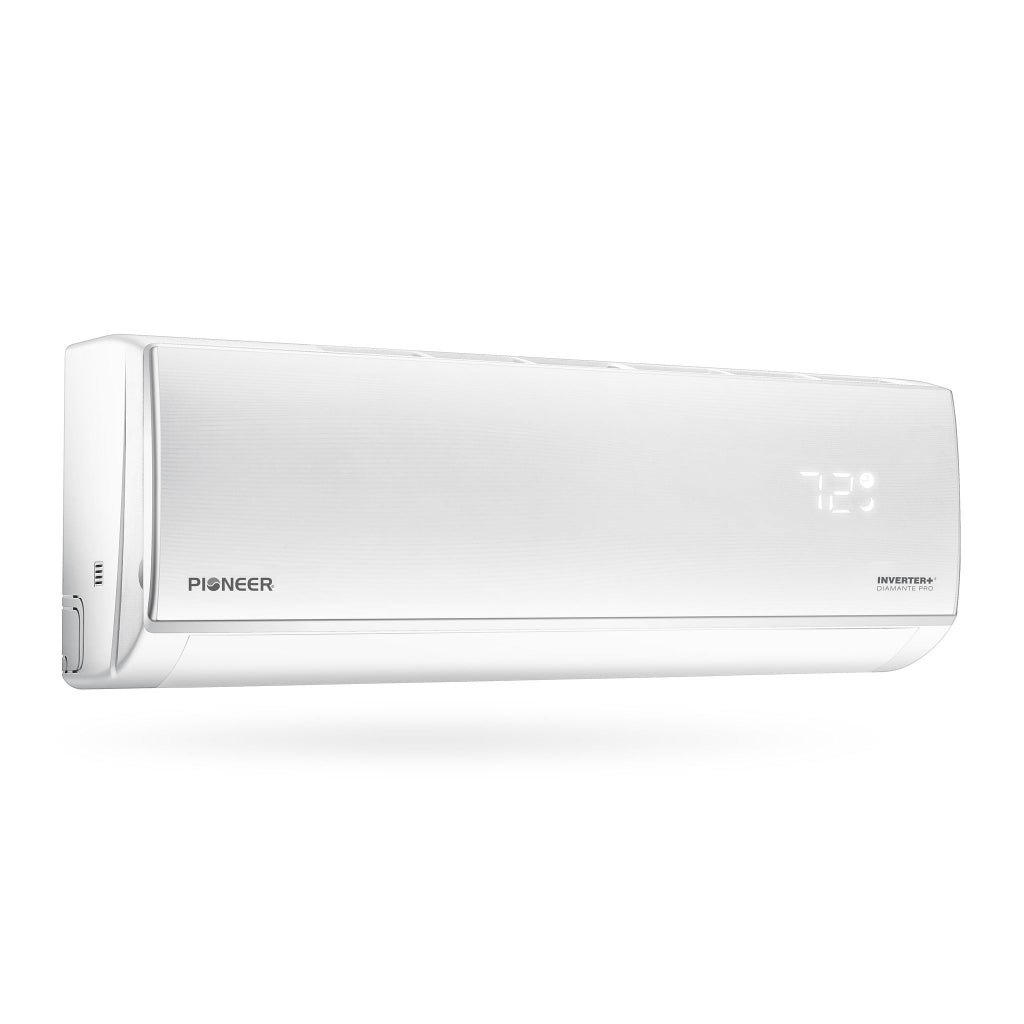

Its sleek high-wall design, intelligent airflow controls, and ultra-quiet operation make it an ideal climate solution for spaces where comfort, aesthetics, and energy performance matter equally.
Why Customers Love It
- High-efficiency 20 SEER2 inverter performance
- Quiet low-profile wall-mounted design
- Reliable heating operation down to -4°F
- Excellent solution for compact living environments
- Dual-axis airflow improves comfort distribution
- Includes 16 ft installation kit
- Eco-conscious R454b refrigerant
- Ultra-quiet sleep and low-noise modes
- Ideal for ADUs, cabins, offices, and tiny homes
Quick Specs
| Specification | Details |
|---|---|
| System Type | High-Wall Ductless Mini-Split Heat Pump |
| Cooling Capacity | 9,000 BTU |
| Heating Capacity | 10,000 BTU |
| Cooling Efficiency | 20 SEER2 / 12 EER2 |
| Heating Efficiency | 10 HSPF2 |
| Refrigerant | R454b |
| Voltage | 208/230V |
| Recommended Coverage | 250–350 sq ft |
| Compressor Type | Variable-Speed DC Inverter |
| Ambient Heating Range | Down to -4°F |
| Ambient Cooling Range | Up to 122°F |
| Airflow Control | Motorized Dual-Axis Louvers |
| Installation Kit | Included 16 Ft Kit |
| Indoor Sound Range | 29–43 dB(A) |
| Outdoor Sound Level | 54 dB(A) |
| Breaker Requirement | 15A Double-Pole |
High-Efficiency Inverter Climate Performance
The Diamante Pro™ uses variable-speed DC inverter technology to continuously regulate compressor output based on real-time heating and cooling demand.
Benefits include:
- improved temperature consistency
- reduced energy consumption
- quieter operation
- smoother performance
- better humidity management
- reduced startup strain
Its 20 SEER2 efficiency rating makes it an excellent solution for energy-conscious homes and off-grid energy systems where climate efficiency directly impacts overall power consumption.
Designed for Compact Architectural Spaces
With a recommended coverage area of approximately 250–350 sq ft, this system is ideally suited for:
- tiny homes
- ADUs
- guest suites
- offices
- wellness rooms
- container homes
- cabins
- studio spaces
The clean high-wall design integrates easily into modern interiors while minimizing floor-space impact.
Four-Season Heating & Cooling
Unlike conventional cooling-only systems, the Diamante Pro™ provides year-round climate management through integrated heat pump functionality.
Operating ranges include:
- heating down to -4°F
- cooling operation up to 122°F
This makes the system adaptable across:
- mountain climates
- desert environments
- coastal regions
- transitional seasonal zones
Its inverter-driven heating performance offers dependable comfort during colder conditions without requiring supplemental heating in many compact environments.
Quiet Interior Comfort
Designed for residential comfort environments, the indoor unit operates as low as 29 dB(A) in low-noise mode.

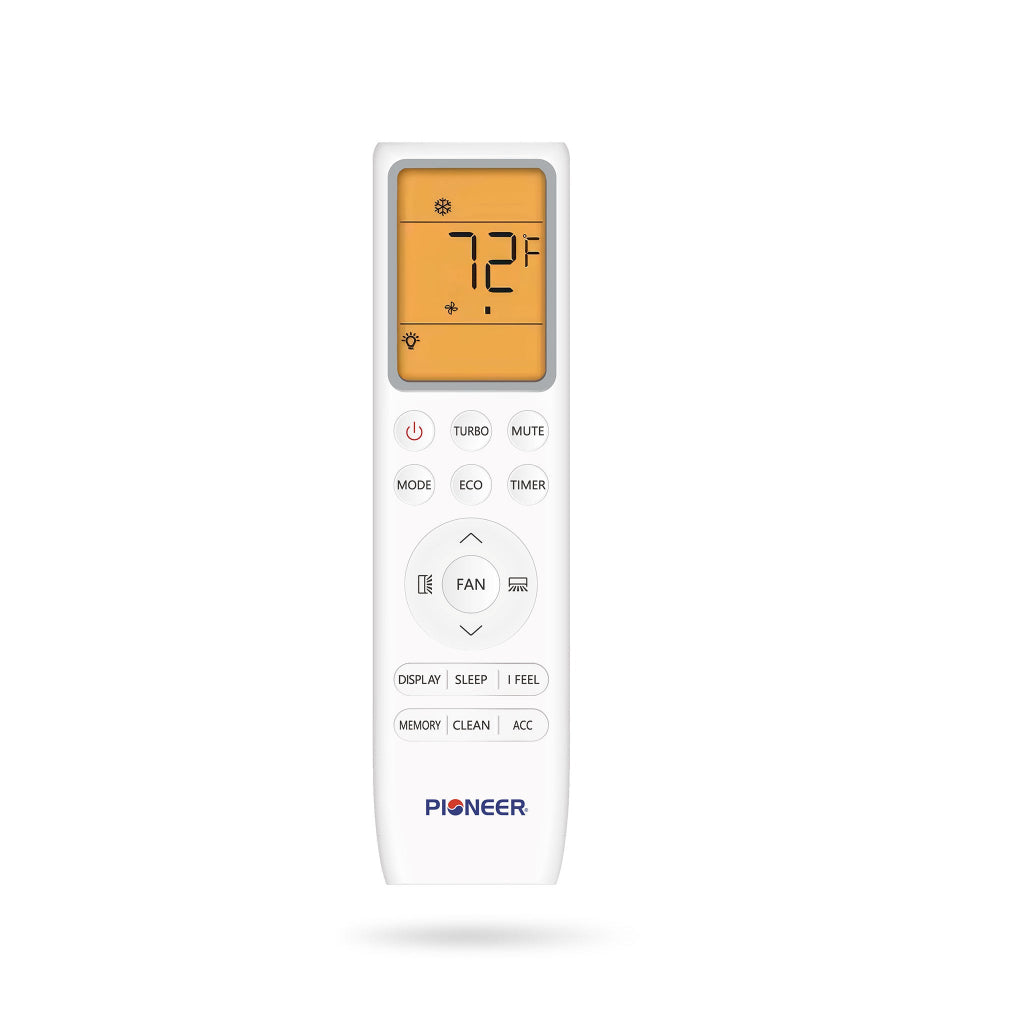

Additional comfort features include:
- Sleep Mode
- ECO Mode
- Turbo Mode
- Self-Clean Cycle
- IFEEL temperature sensing
- programmable timers
- memory settings
Combined with motorized dual-axis airflow control, the system delivers more even temperature distribution throughout the room.
Environmentally Conscious Refrigerant
The Diamante Pro™ uses next-generation R454b refrigerant designed to reduce environmental impact compared to older refrigerant technologies.
Benefits include:
- improved environmental performance
- modern regulatory compatibility
- efficient thermal transfer
- future-focused system design
This aligns well with energy-conscious and sustainability-oriented building projects.
Simplified Installation Package

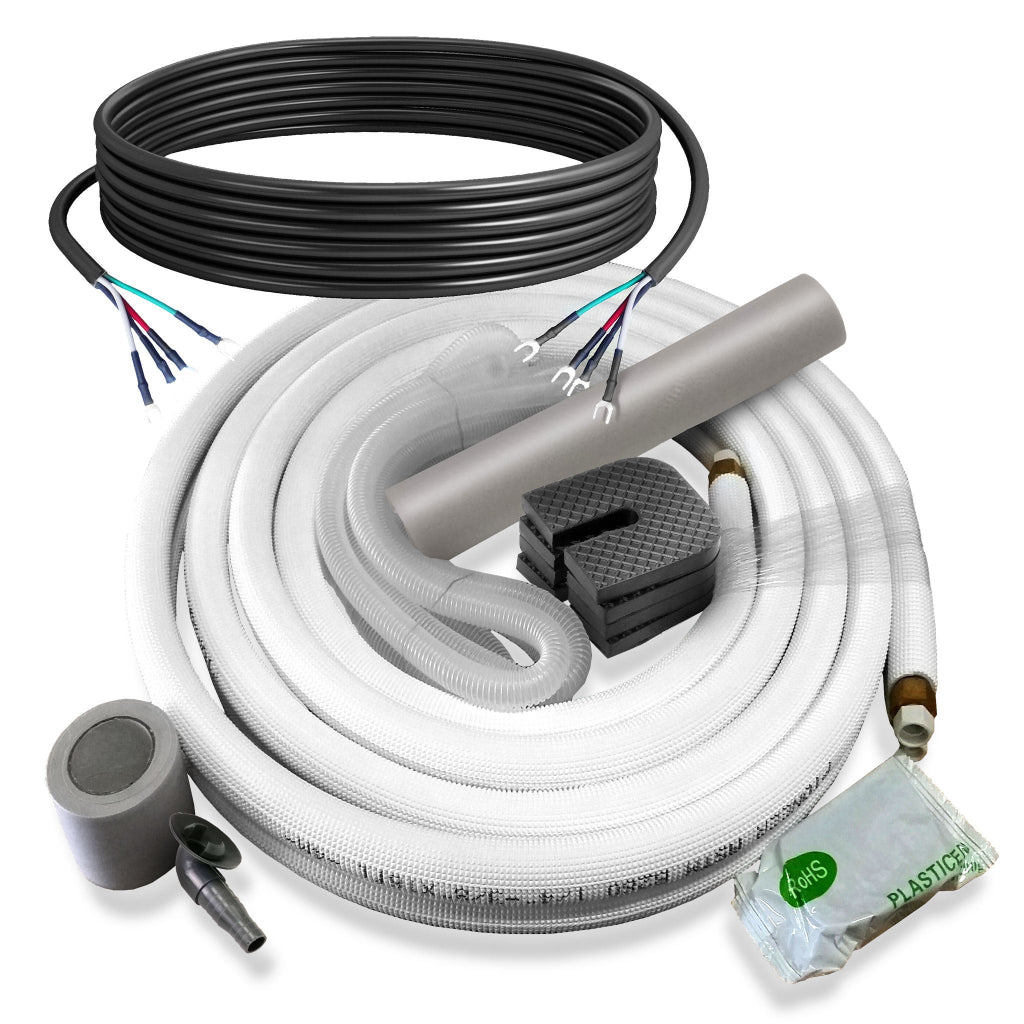

The included 16 ft installation kit helps streamline deployment for residential and light commercial applications.
The system supports:
- compact installations
- wall-mounted integration
- retrofit applications
- detached structures
- small-footprint climate zones
Its flexible design makes it a strong fit for both new construction and climate upgrades.
Ideal Applications
- Tiny homes
- Architectural ADUs
- Wellness studios
- Guest suites
- Home offices
- Container homes
- Compact cabins
- Off-grid structures
- Retreat environments
- Energy-efficient living spaces
Bottom Line
The Pioneer Diamante Pro™ 9,000 BTU Mini-Split delivers efficient year-round climate control, quiet inverter-driven comfort, and refined ductless performance for compact architectural and off-grid living environments.
