Pioneer 10,000 BTU Under-Bench Heat Pump Air Conditioner System
Compact Four-Season Climate Control for Tiny Homes, ADUs & Modern Mobile Spaces
Overview
The Pioneer Under-Bench Heat Pump System is a compact all-in-one heating and cooling solution designed for modern small-space living environments where efficiency, quiet comfort, and clean architectural integration matter most.

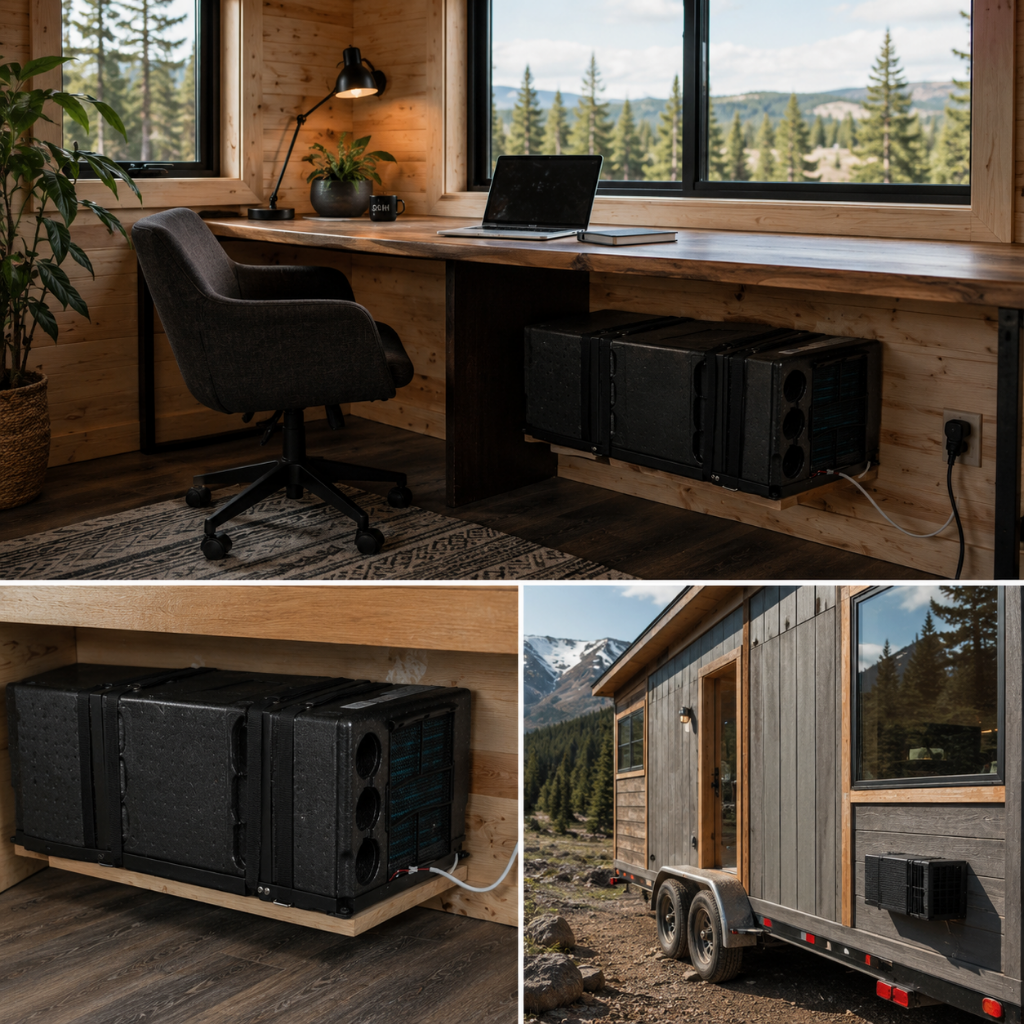

Built around a low-profile concealed installation design, this compact climate system fits discreetly beneath benches, cabinetry, or built-in furniture while delivering dependable year-round heating and cooling performance. Its ultra-quiet operation, low energy demand, and flexible ducting capabilities make it an ideal solution for tiny homes, park models, luxury retreat cabins, mobile offices, and modern off-grid structures where traditional rooftop systems feel bulky or visually disruptive.
Designed to preserve roof space, maintain sleek exterior lines, and support energy-conscious living, the Pioneer Under-Bench System delivers refined comfort without compromising the aesthetic of the space around it.
Why Customers Love It
✓ Hidden low-profile installation design
✓ Heating & cooling in one compact system
✓ Ultra-quiet operation under 40 dB(A)
✓ Ideal for tiny homes & park model layouts
✓ Preserves valuable roof space for solar systems
✓ Low power demand for energy-conscious builds
✓ Flexible multi-zone ducting configuration
✓ Compact modern climate control solution
Quick Specs
| Spec | Detail |
|---|---|
| System Type | Under-Bench Heat Pump AC System |
| Cooling Capacity | 10,000 BTU |
| Heating Capacity | 9,500 BTU |
| Cooling Efficiency | 10.1 EER |
| Heating COP | 3.51 |
| Voltage | 110–120V |
| Refrigerant | R32 |
| Max Airflow | 206 CFM |
| Noise Level | Under 40 dB(A) |
| Fan Speeds | 3-Speed |
| Water Protection | IPX5 |
| Weight | 61 lbs |
| Dimensions | 28-7/8" x 16" x 11-5/8" |

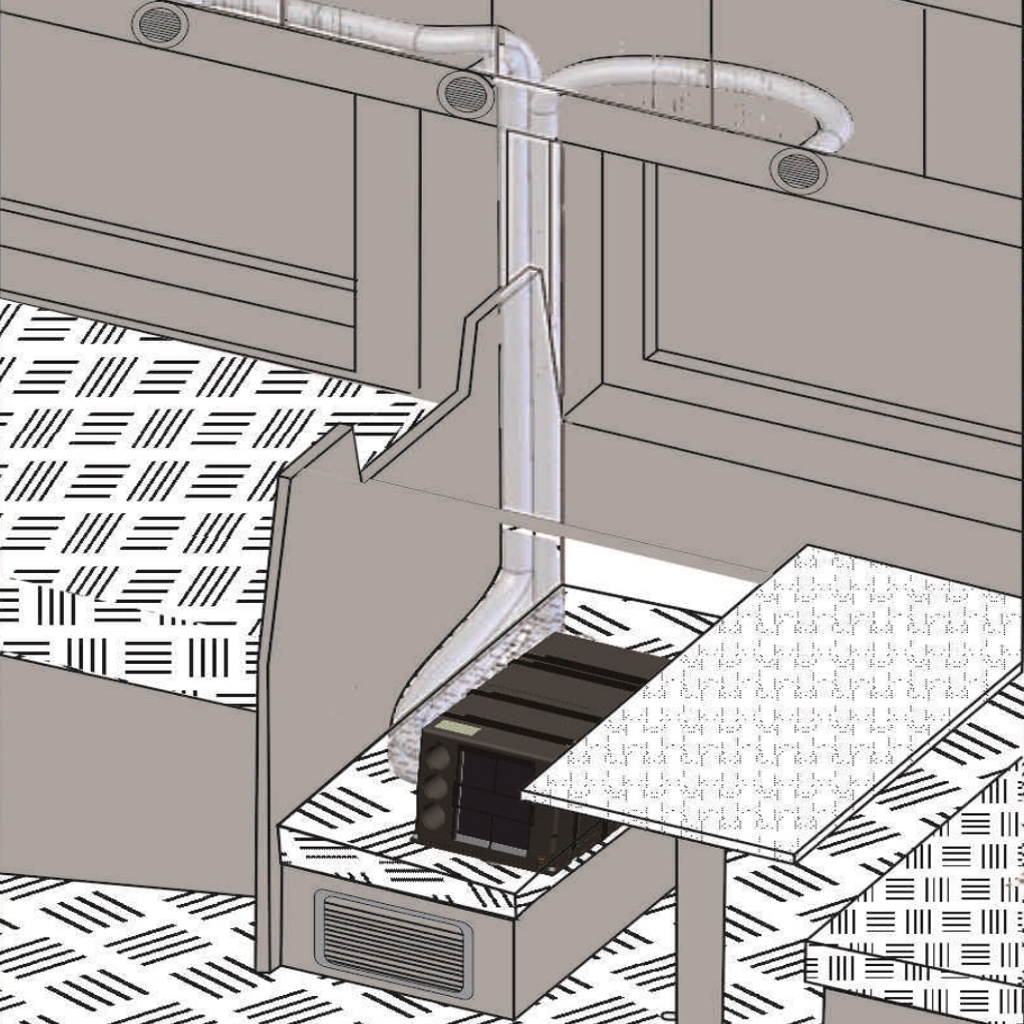

Designed for Modern Compact Living
Unlike traditional rooftop HVAC systems, the under-bench architecture keeps equipment hidden from view while preserving:
- roof space for solar arrays
- clean exterior aesthetics
- interior headroom
- minimalist architectural design
The result is a more refined and integrated climate solution for modern compact environments.
Ideal applications include:
- tiny homes
- park model homes
- ADUs
- luxury retreat cabins
- mobile office spaces
- off-grid structures
- wellness-focused builds
Four-Season Heat Pump Performance
The integrated heat pump system provides both cooling and heating within a single compact platform.
Cooling Performance
- 10,000 BTU cooling capacity
- 10.1 EER efficiency
- Operates up to 104°F
Heating Performance
- 9,500 BTU heating capacity
- 3.51 COP efficiency
- Operates down to 19°F
This balanced performance profile makes the system ideal for year-round comfort across a wide variety of climates.
Built for Energy-Conscious Systems
The Pioneer Under-Bench System was designed with low power consumption in mind, making it exceptionally compatible with:
- solar power systems
- lithium battery storage
- inverter-based electrical setups
- off-grid energy environments
Maximum Power Draw
| Mode | Consumption |
|---|---|
| Cooling | 989W |
| Heating | 794W |
Its lower startup demand helps reduce strain on compact electrical systems while improving long-term energy efficiency.
Quiet Interior Comfort
Operating below 40 dB(A), the system remains quiet enough for:
- sleeping areas
- remote work environments
- wellness retreats
- meditation spaces
- compact residential interiors
The low-noise design helps create a calmer and more comfortable living experience throughout the day and night.

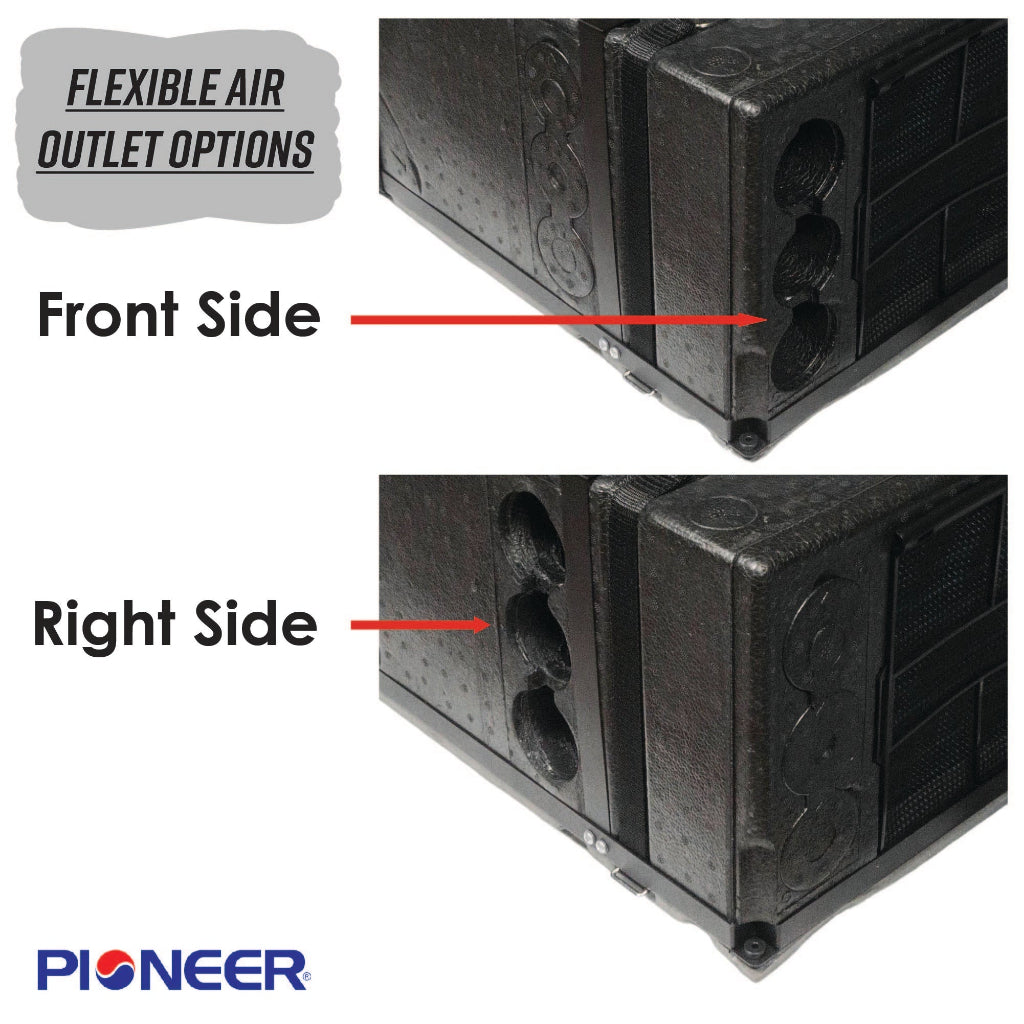

Flexible Ducting Layout
The system supports up to three duct connections with flexible routing options for more balanced airflow distribution throughout the structure.
Benefits include:
- improved temperature consistency
- multi-zone airflow flexibility
- concealed ventilation routing
- cleaner interior presentation
What's Included

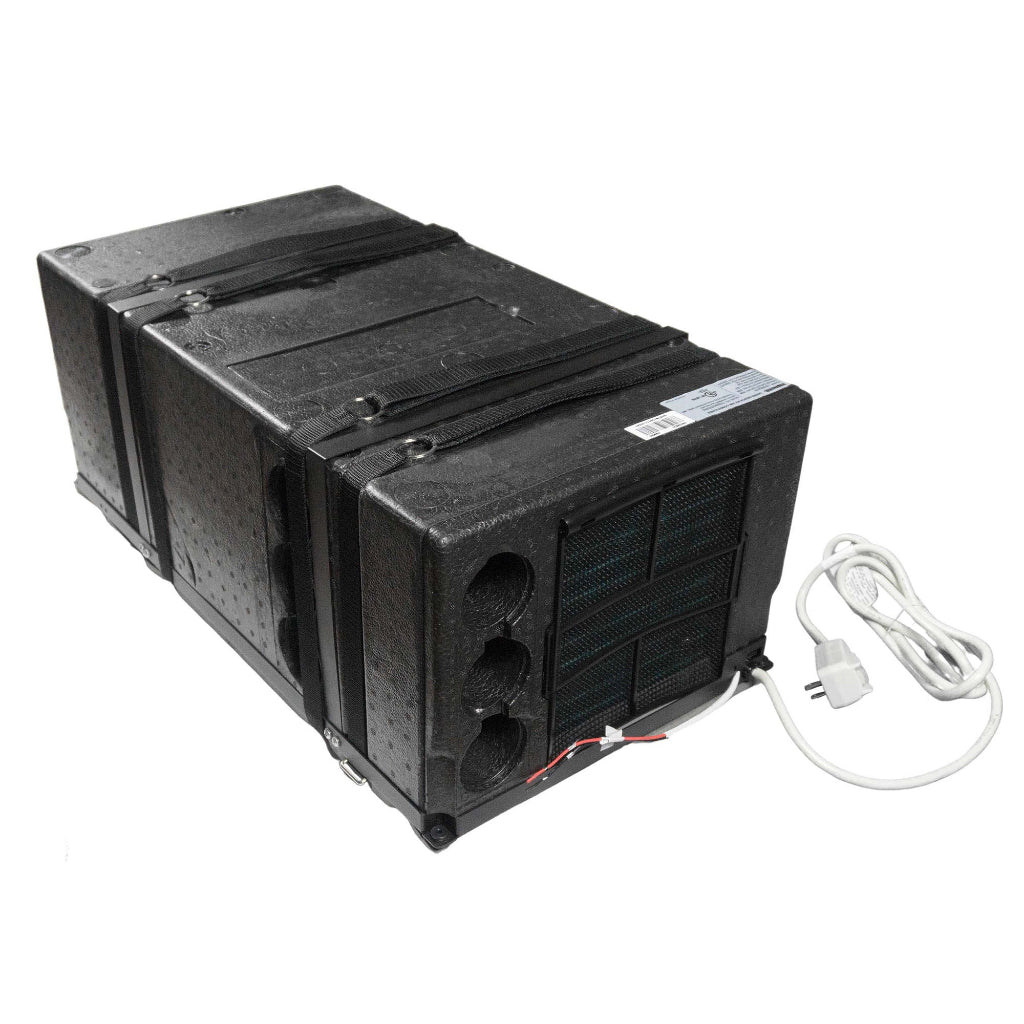

- Pioneer Under-Bench Heat Pump System

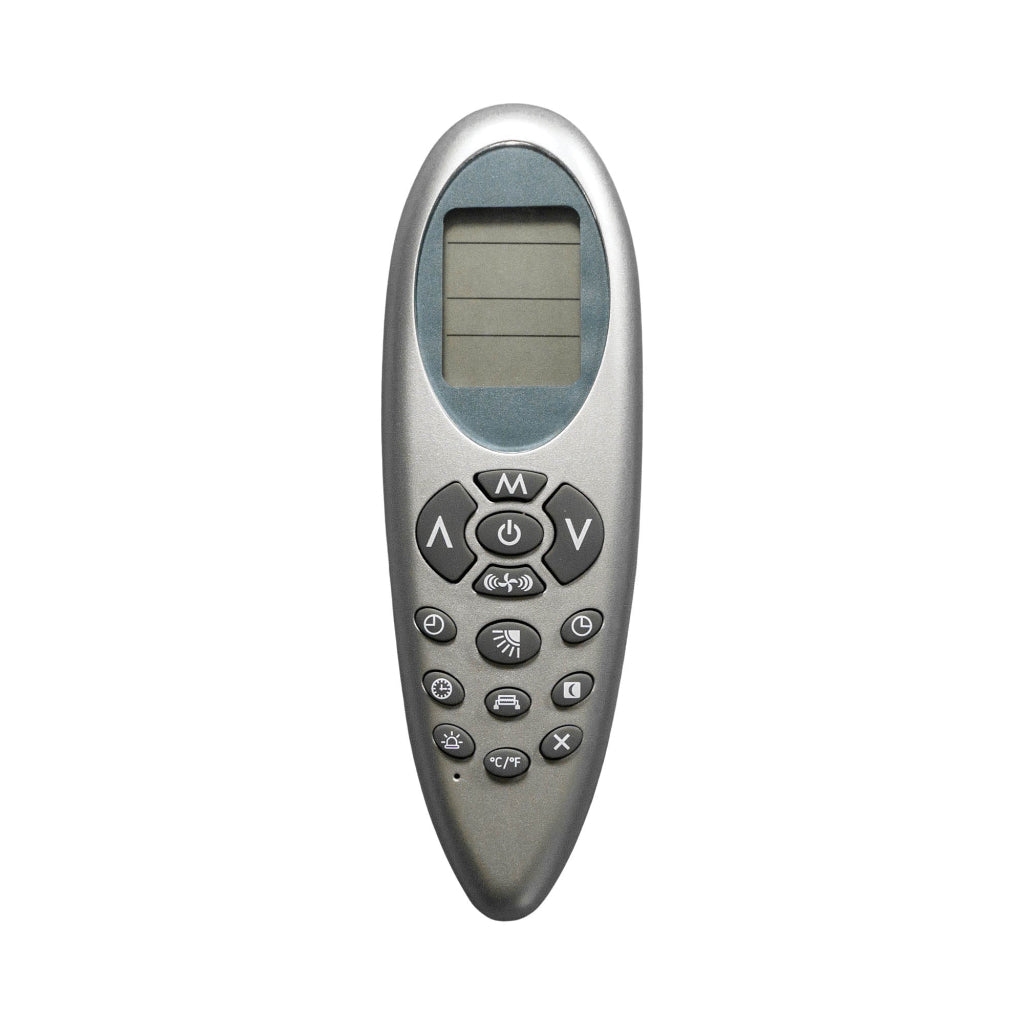

- Handheld remote controller

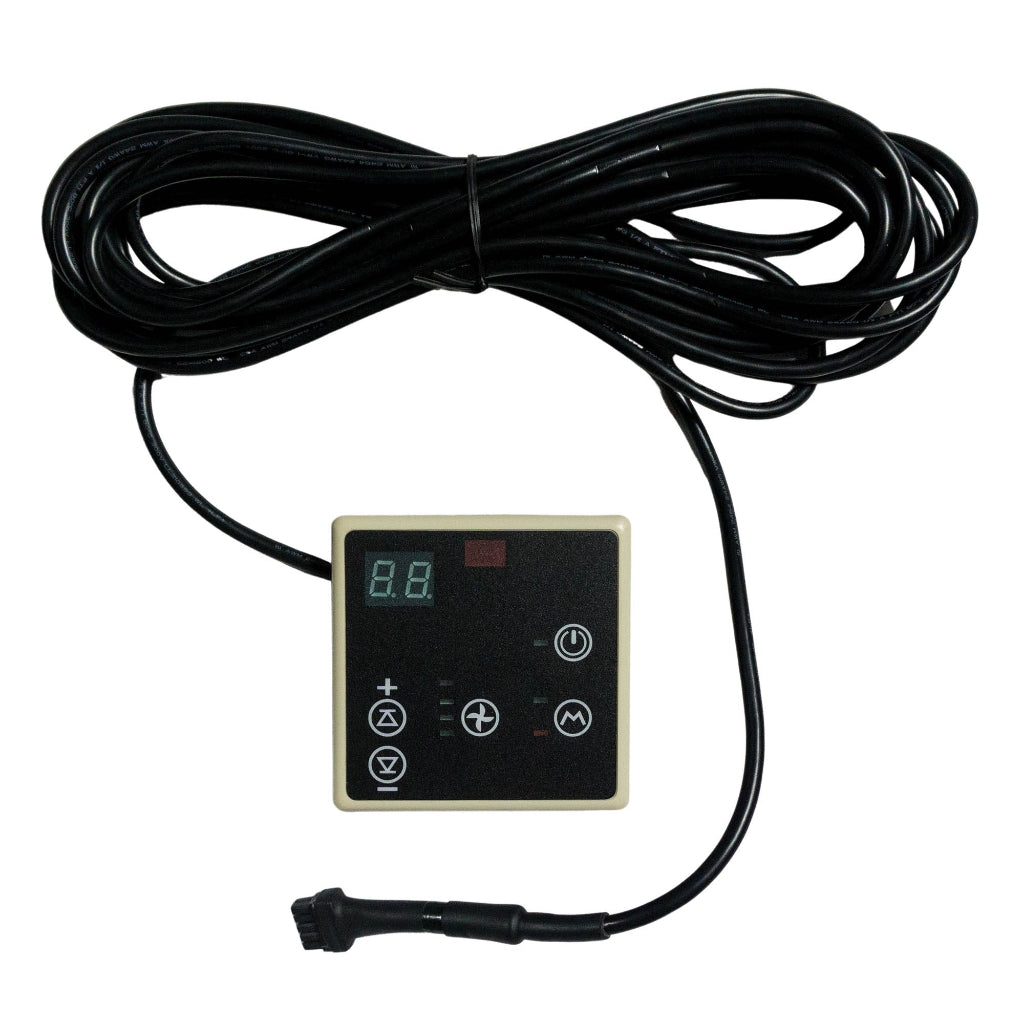

- Wired wall thermostat

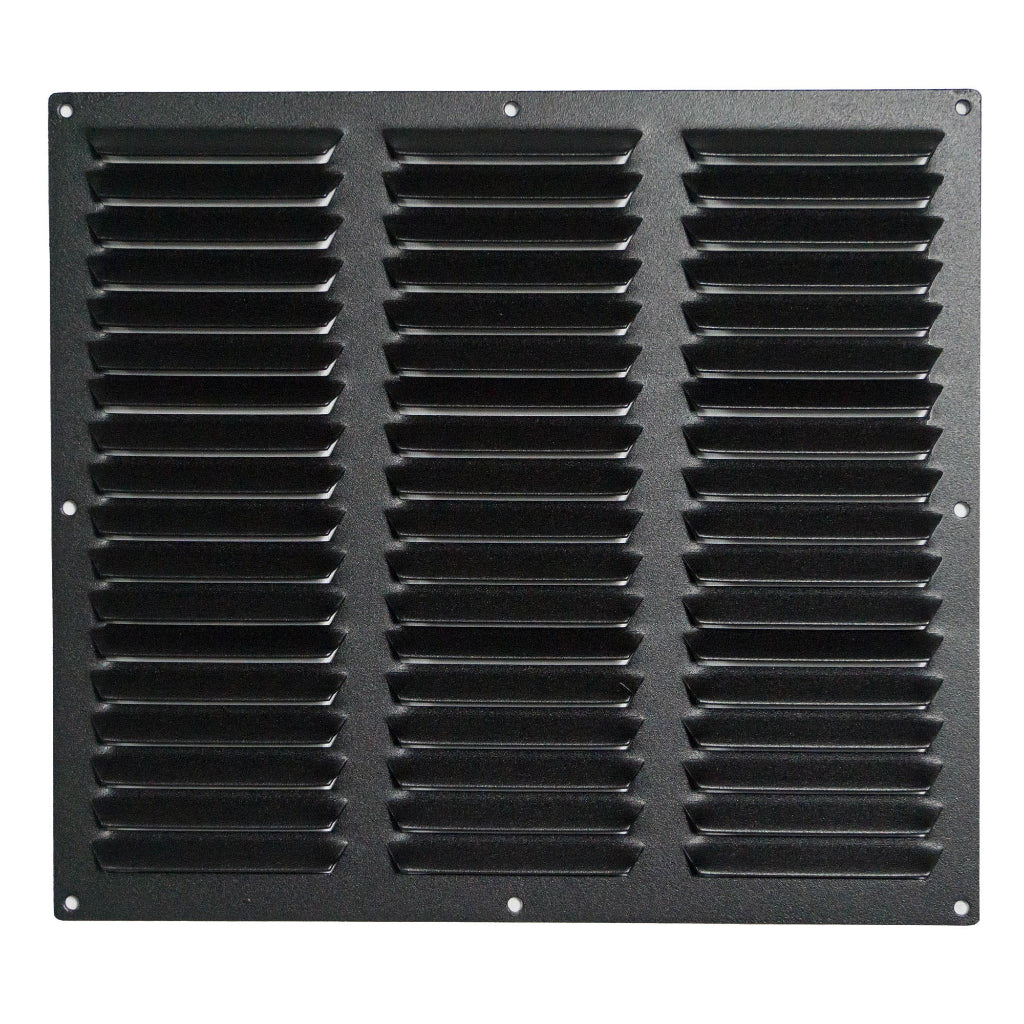

- Metallic return air grille

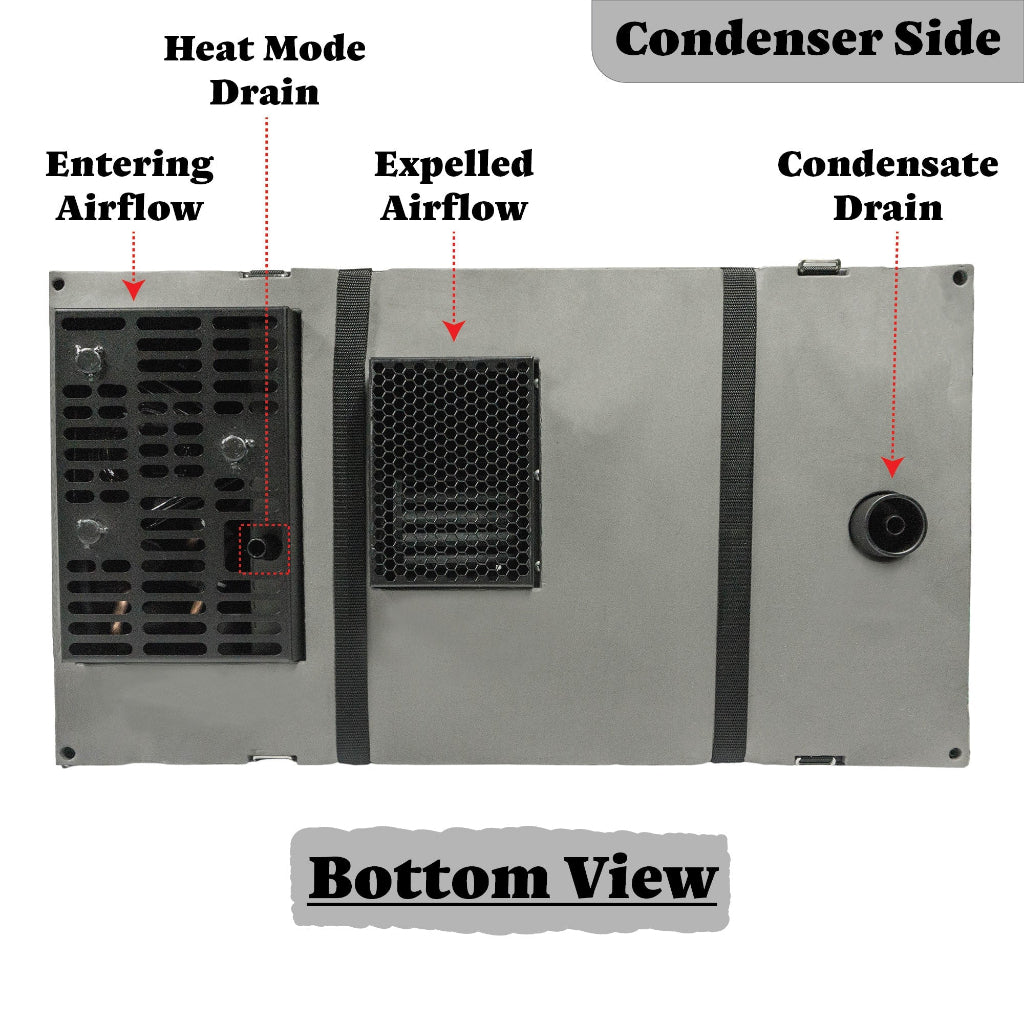

- Drain tubing
- Installation hardware
- Installation & user manual
Warranty Coverage
| Coverage | Duration |
|---|---|
| Parts Warranty | 3 Years |
| Compressor Warranty | 5 Years |
Bottom Line
A compact ultra-quiet under-bench heat pump system designed for modern tiny homes, park models, ADUs, luxury retreats, and energy-conscious off-grid environments where efficient climate control and clean architectural integration matter most.
