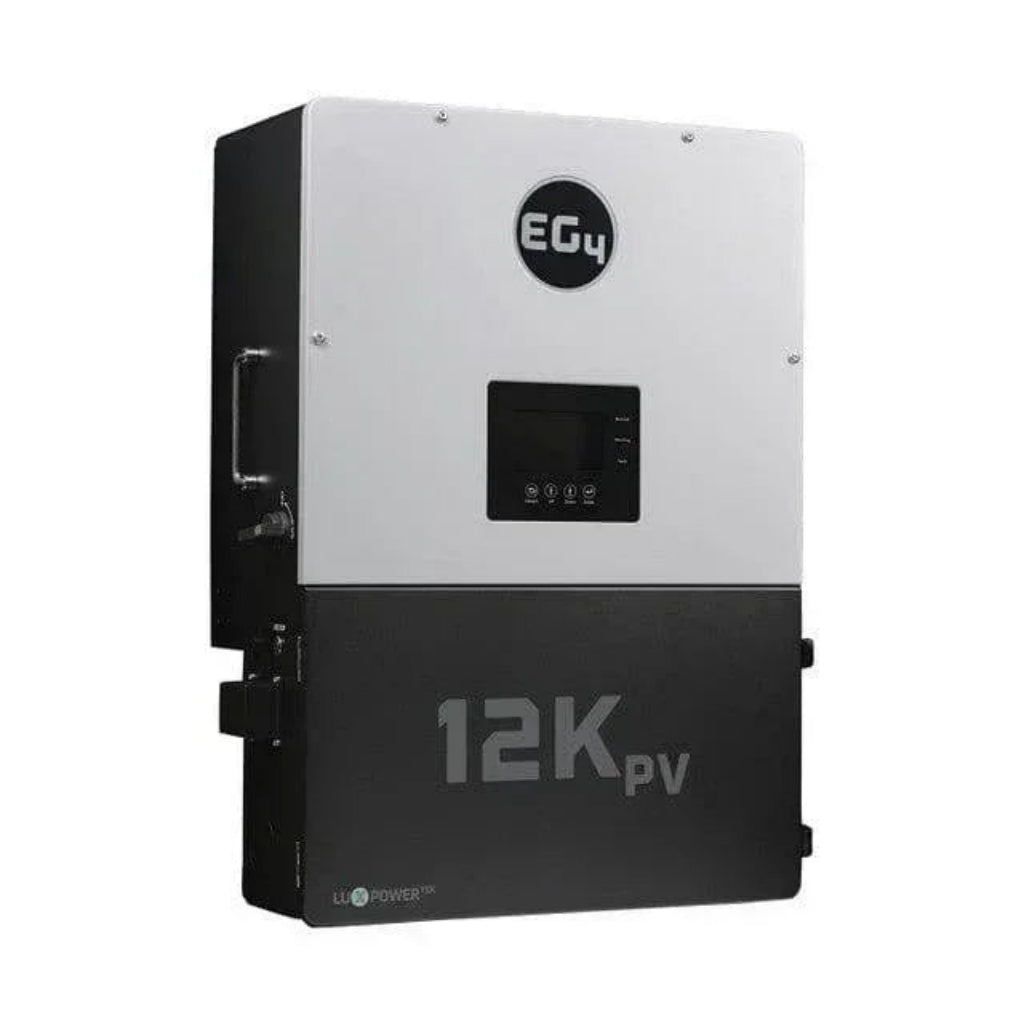

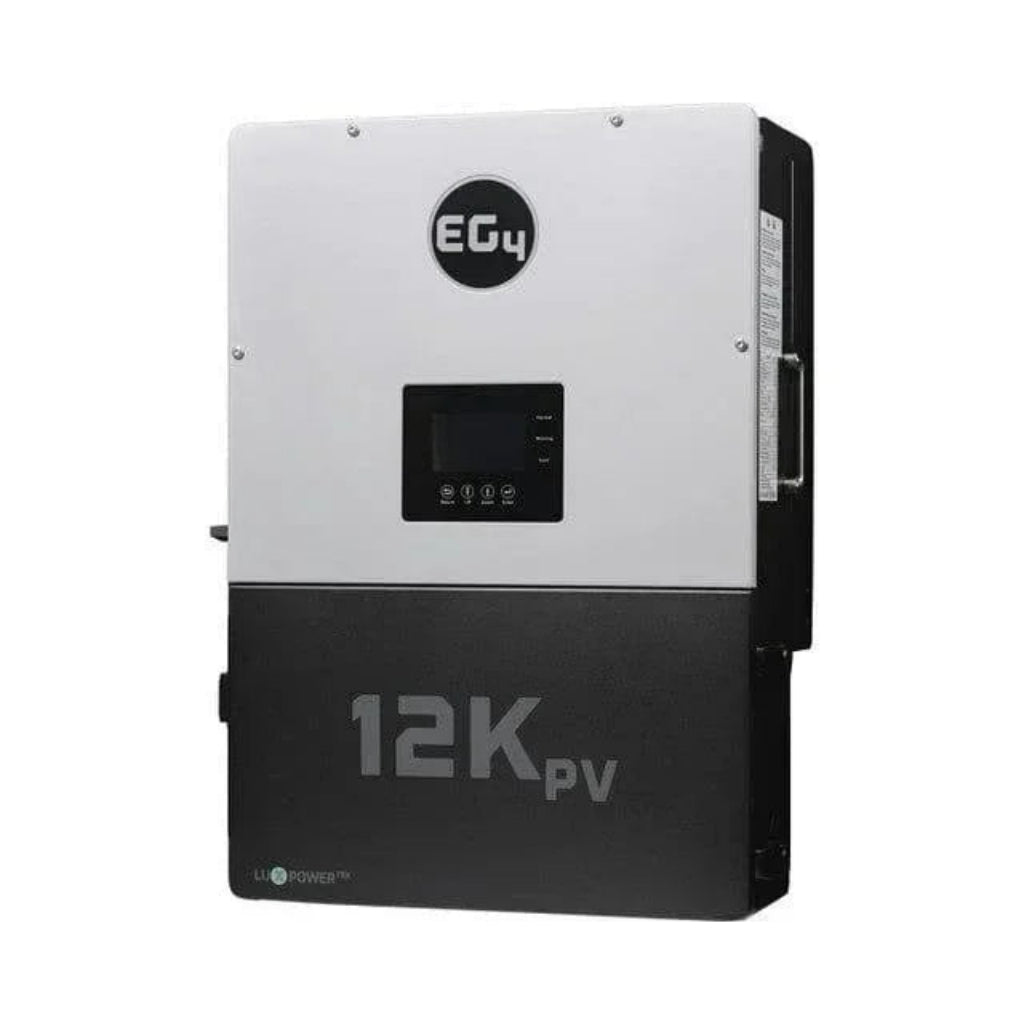

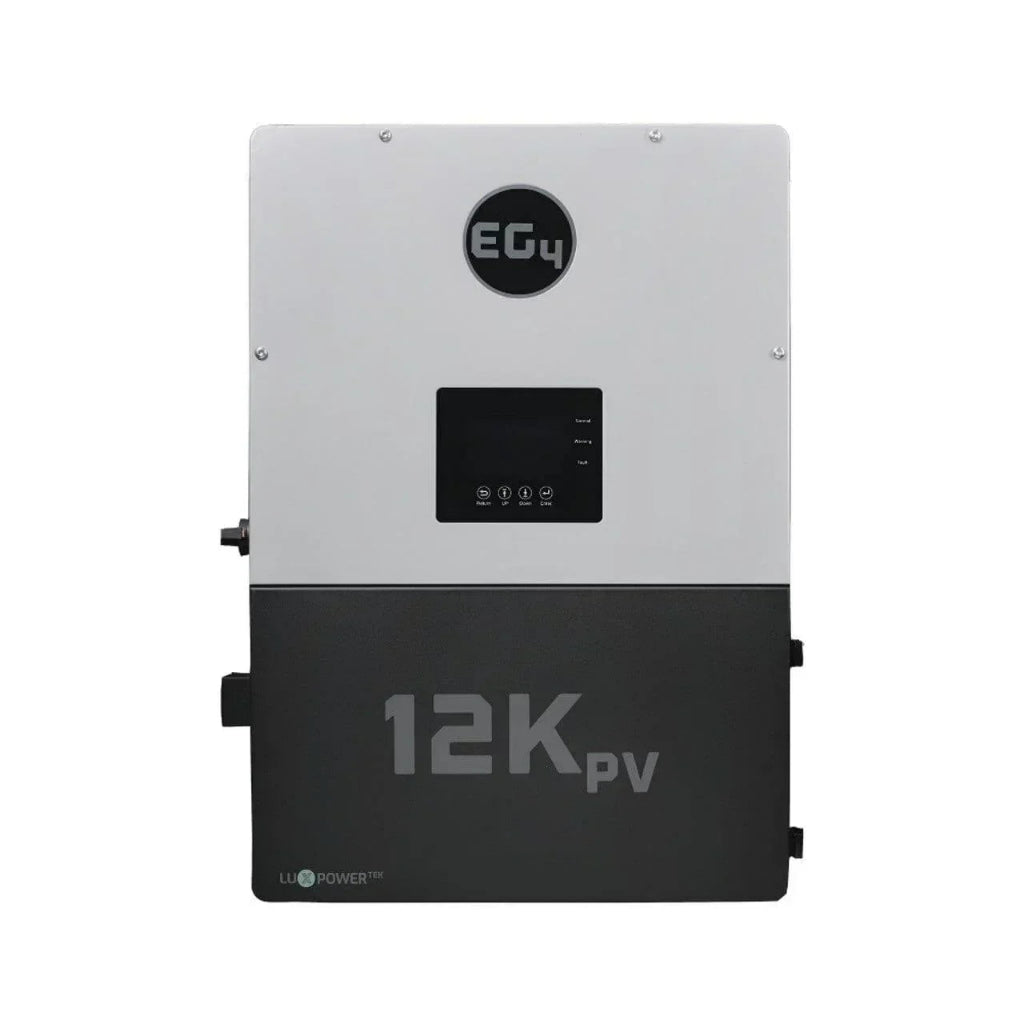

EG4 12kPV Hybrid Solar Inverter (12000W Input, Split Phase)
All-In-One Energy Control Hub — Solar, Battery, Grid, and Generator Integration
Overview
The EG4 12kPV Hybrid Inverter is a high-performance, all-in-one energy management system designed to seamlessly integrate solar input, battery storage, grid power, and generator backup. Built for both residential and light commercial applications, it delivers reliable split-phase power while maximizing energy efficiency and system flexibility.
Engineered on the same platform as the EG4 18kPV, it offers scalable performance and intelligent control for modern off-grid and hybrid energy systems.
Why This System Works
-
All-In-One Hybrid Design
Combines inverter, charger, and MPPT solar controller into a single unit -
High Solar Input Capacity
Supports up to 15kW PV array with dual MPPTs for optimal energy harvest -
Reliable Continuous Output
Delivers 8,000W continuous AC power with high surge capability -
Split-Phase Power (120/240V)
Ideal for whole-home and light commercial applications -
Fast Transfer Time (10ms)
Protects sensitive electronics during outages -
Expandable System Architecture
Parallel up to 10 units (80kW total output) -
Generator Integration
Seamlessly connects with backup generators for continuous uptime -

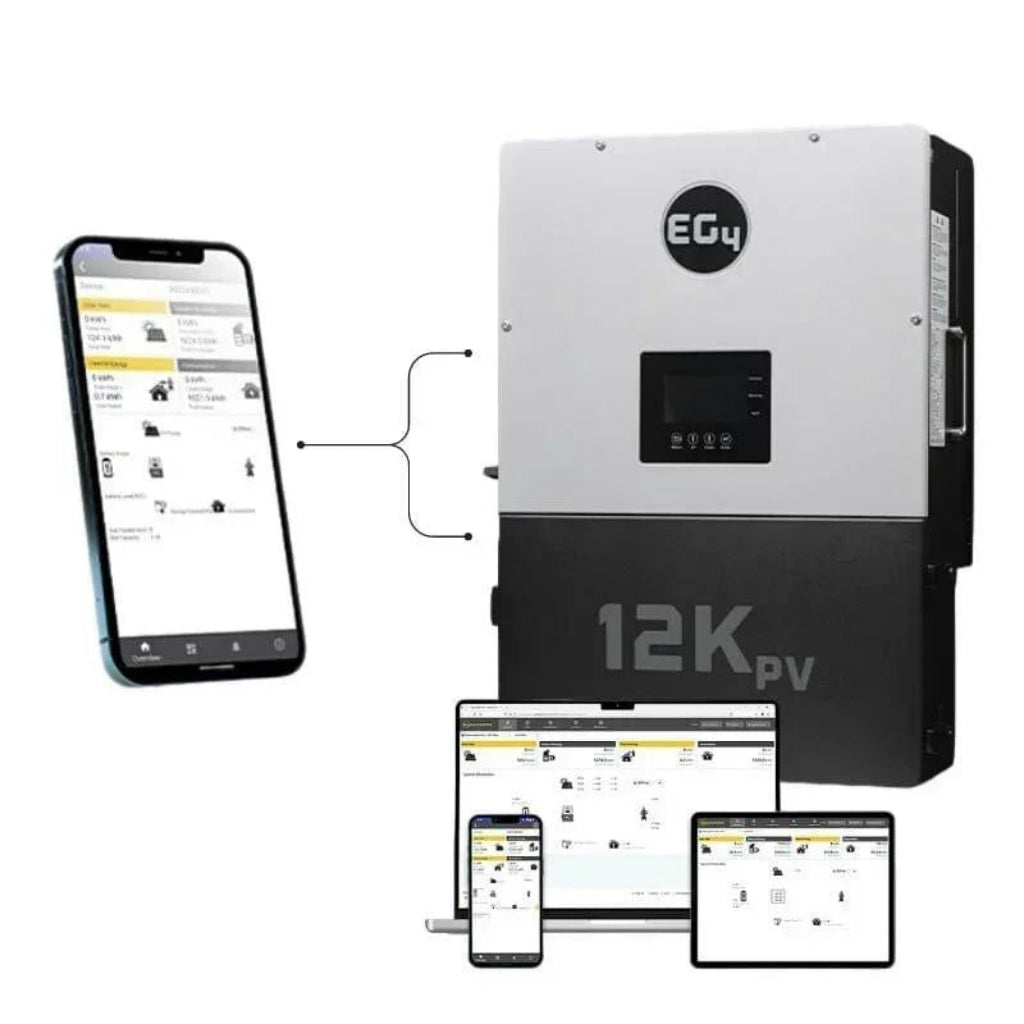

Advanced Monitoring & Control
Wi-Fi-enabled system monitoring via EG4 app and web platform -
Export Limiting Capability
Ideal for grid-tied systems with controlled export requirements
System Role
Functions as the central brain of an off-grid or hybrid energy system, managing power flow between solar, batteries, grid, and backup sources.
Perfectly integrates with:
- Solar arrays
- Battery storage systems
- Backup generators
- Off-grid or grid-tied environments
Key Specifications
| Spec | Detail |
|---|---|
| Nominal Power Output | 8000W |
| Max Solar Input | 15,000W |
| MPPT Input | 12,000W (Dual MPPT) |
| Voltage | 120/240V Split Phase |
| Output Current | 33.3A @ 240V |
| Max Parallel Units | 10 (80kW total) |
| Transfer Time | 10ms |
| Surge Capacity | 134A |
| Communication | Wi-Fi / RS485 / CAN |
| Dimensions | 29.5" × 20.5" × 11.2" |
| Weight | 110 lbs |
| Warranty | 10 Years |
What’s Included
- EG4 12kPV Hybrid Inverter
- Wi-Fi Dongle
- Battery Communication Cables
- Current Transformers (CTs)
- Wall Mounting Hardware
- User Manuals and Certifications
Ideal Applications
- Off-grid homes and cabins
- Hybrid solar systems with battery backup
- Energy independence setups
- Light commercial energy systems
- Emergency power and backup solutions
Bottom Line
A powerful, scalable hybrid inverter that acts as the command center of your energy system — delivering efficient, flexible, and reliable power across solar, battery, grid, and generator inputs.
