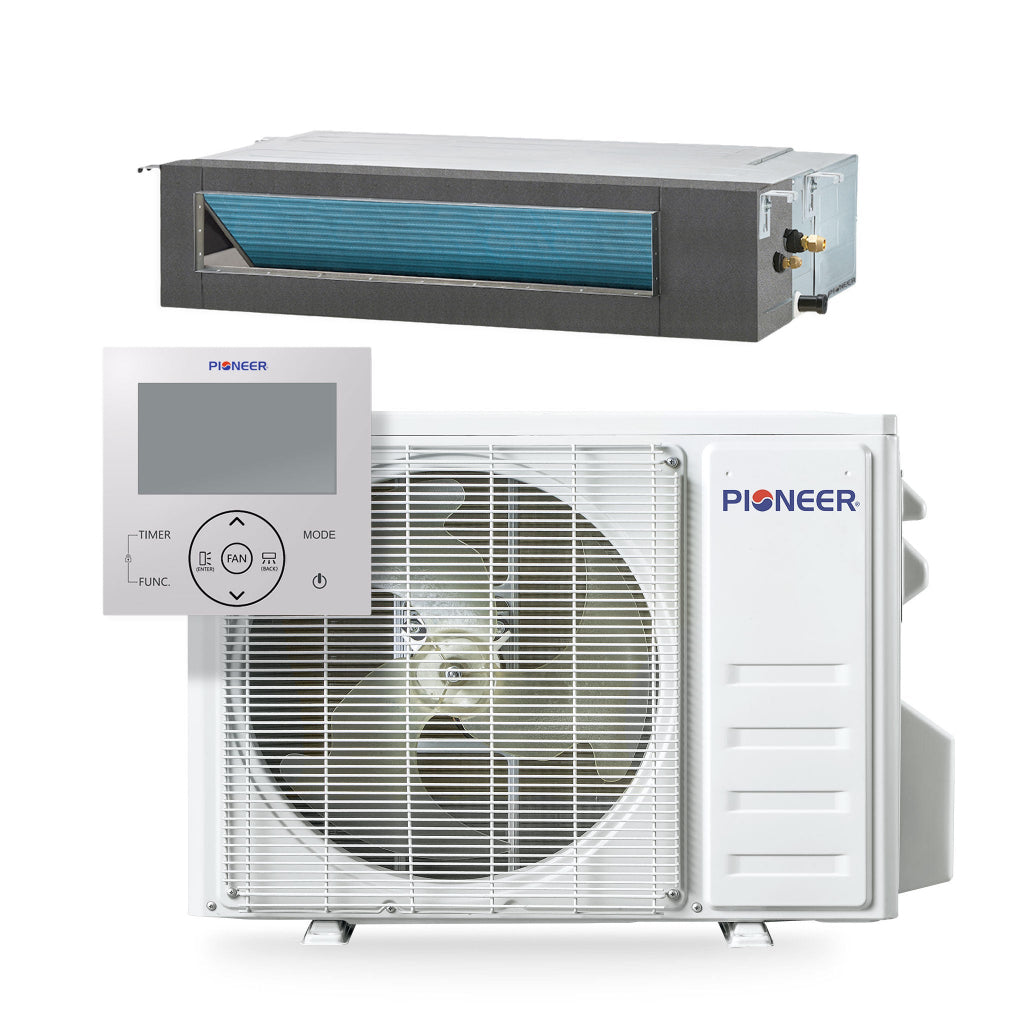

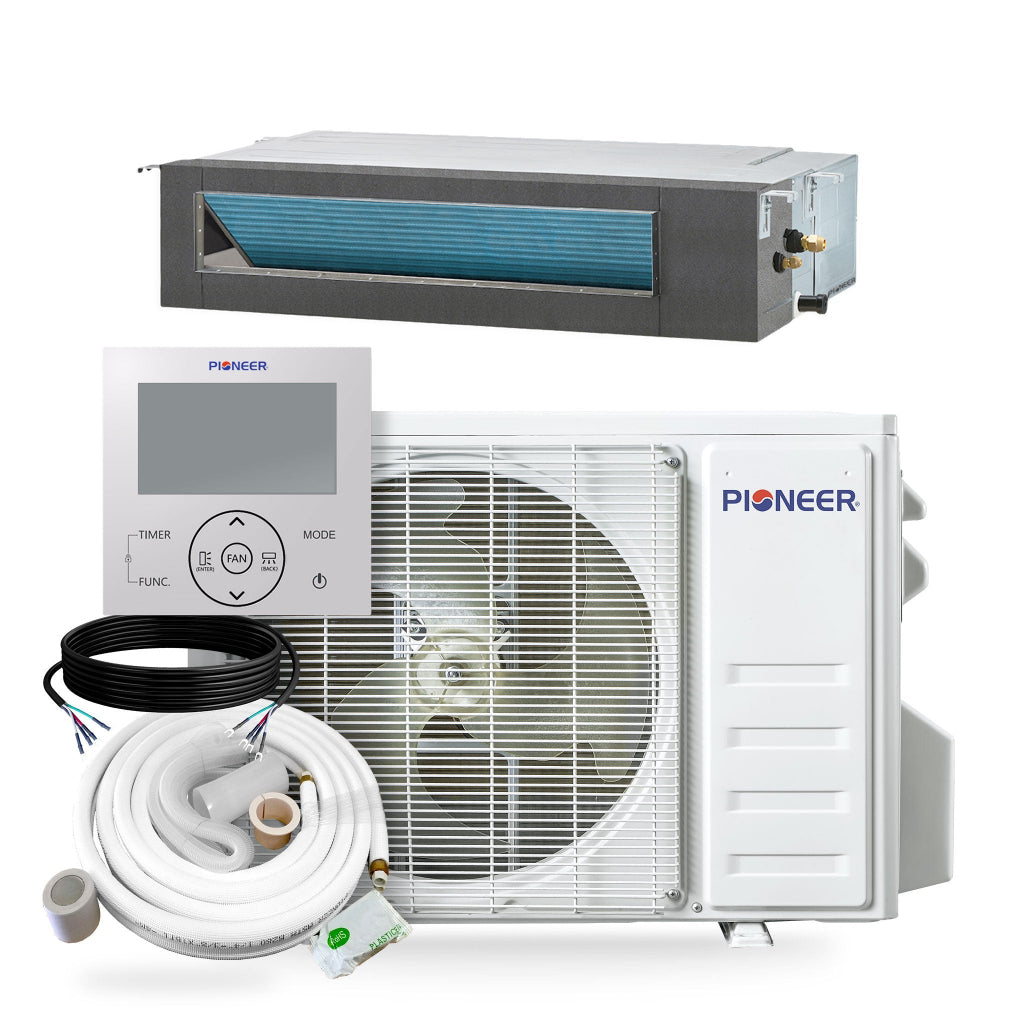

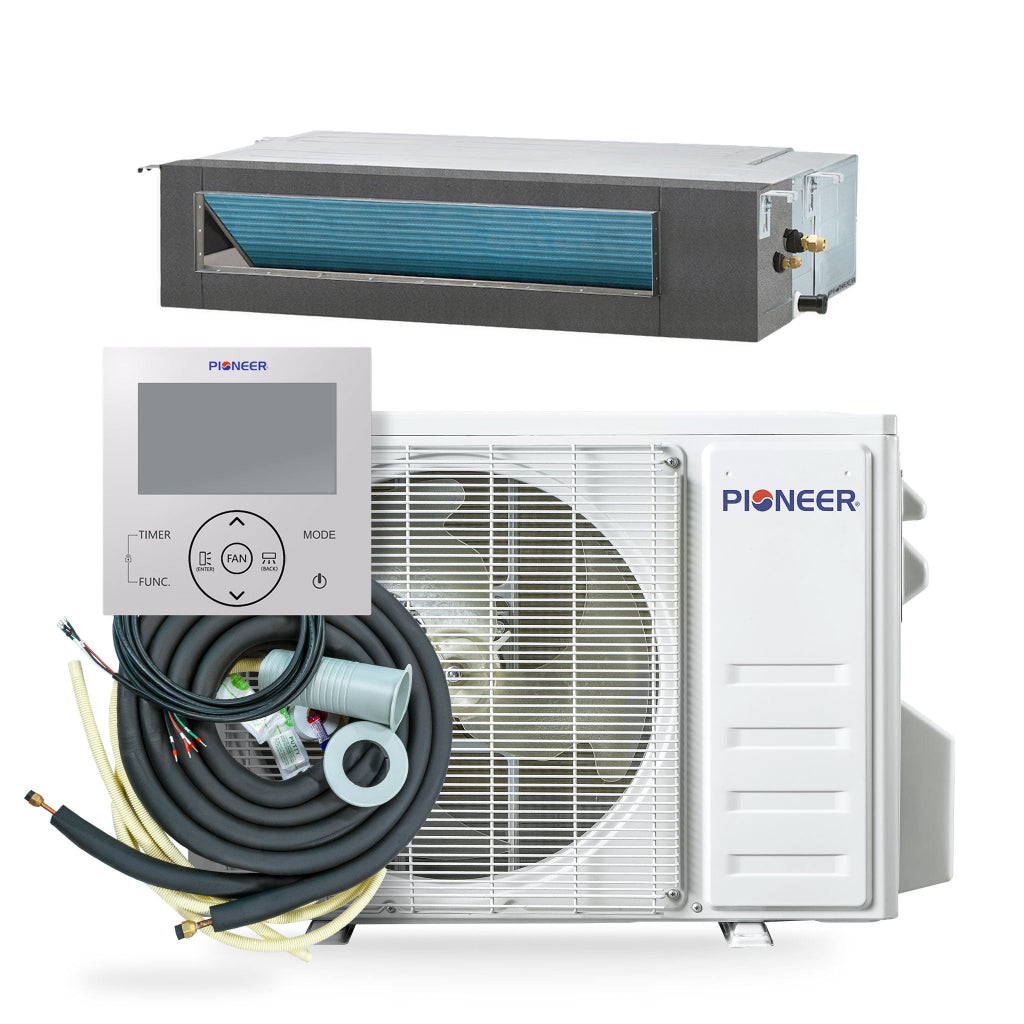

Pioneer Quantum Ultra 9,500 BTU Ceiling Concealed Ducted Heat Pump System
Hidden High-Efficiency Climate Control for Tiny Homes, ADUs & Modern Architectural Spaces
Overview
The Pioneer Quantum Ultra Ceiling Concealed Heat Pump System is a compact high-efficiency ducted climate solution designed for modern spaces where clean aesthetics, quiet operation, and year-round comfort matter most.
Built around a concealed ceiling-mounted air handler, this low-profile system keeps climate equipment hidden from view while delivering powerful inverter-driven heating and cooling performance. Its compact footprint makes it especially well suited for tiny homes, ADUs, offices, wellness spaces, luxury retreats, and other architectural environments where exposed wall-mounted systems may disrupt the visual flow of the interior.
With ultra-low ambient operation, energy-efficient inverter technology, and flexible concealed ducting, the Quantum Ultra delivers refined whole-room comfort without sacrificing modern design principles.
Why Customers Love It
✓ Hidden ceiling-concealed installation design
✓ Clean minimalist architectural appearance
✓ High-efficiency inverter heat pump performance
✓ Quiet interior operation
✓ Excellent for tiny homes & ADUs
✓ Low ambient heating down to -13°F
✓ Compact low-profile air handler
✓ Ideal for modern off-grid builds
Quick Specs
| Spec | Detail |
|---|---|
| System Type | Ceiling Concealed Ducted Heat Pump |
| Cooling Capacity | 9,500 BTU |
| Heating Capacity | 9,500 BTU |
| Cooling Efficiency | 19.6 SEER2 |
| Cooling EER2 | 12.0 |
| Heating Efficiency | 10.0 HSPF2 |
| Heating COP2 | 3.5 |
| Voltage | 208/230V |
| Refrigerant | R454b |
| Recommended Coverage | 250–350 SQ FT |
| Minimum Heating Temp | -13°F |
| Maximum Cooling Temp | 131°F |
| Indoor Noise Level | 39–43 dB(A) |
| Breaker Requirement | 15A Double Pole |
Designed for Modern Architectural Spaces
Unlike traditional wall-mounted mini splits, the Quantum Ultra uses a concealed ceiling-mounted air handler that keeps the system visually hidden while distributing conditioned air through discreet ducting.
This creates:
- cleaner interior aesthetics
- uninterrupted wall space
- more flexible furniture layouts
- minimalist climate integration
- quieter living environments
Perfect for:
- tiny homes
- ADUs
- modern cabins
- luxury retreats
- offices & studios
- wellness-focused interiors
High-Efficiency Inverter Performance
The variable-speed DC inverter compressor continuously adjusts output based on real-time demand.
Benefits include:
- lower energy consumption
- improved temperature consistency
- quieter operation
- reduced compressor cycling
- better off-grid efficiency
Cooling Performance
- 9,500 BTU cooling capacity
- 19.6 SEER2 efficiency
- Cooling range up to 10,400 BTU
Heating Performance
- 9,500 BTU heating capacity
- 10.0 HSPF2 efficiency
- Heating range up to 12,300 BTU
Built for Harsh Climate Conditions
The Quantum Ultra was engineered for dependable operation across demanding environments.
Operating Range
| Mode | Temperature Range |
|---|---|
| Heating | Down to -13°F |
| Cooling | Up to 131°F |
This makes the system ideal for:
- mountain properties
- desert climates
- off-grid cabins
- four-season retreat environments
Quiet Interior Comfort
The concealed air handler operates as quietly as:
- 39 dB(A)
This low-noise performance is ideal for:
- bedrooms
- meditation rooms
- wellness spaces
- offices
- compact residential interiors
The hidden installation and quieter airflow delivery create a calmer, more refined atmosphere throughout the space.

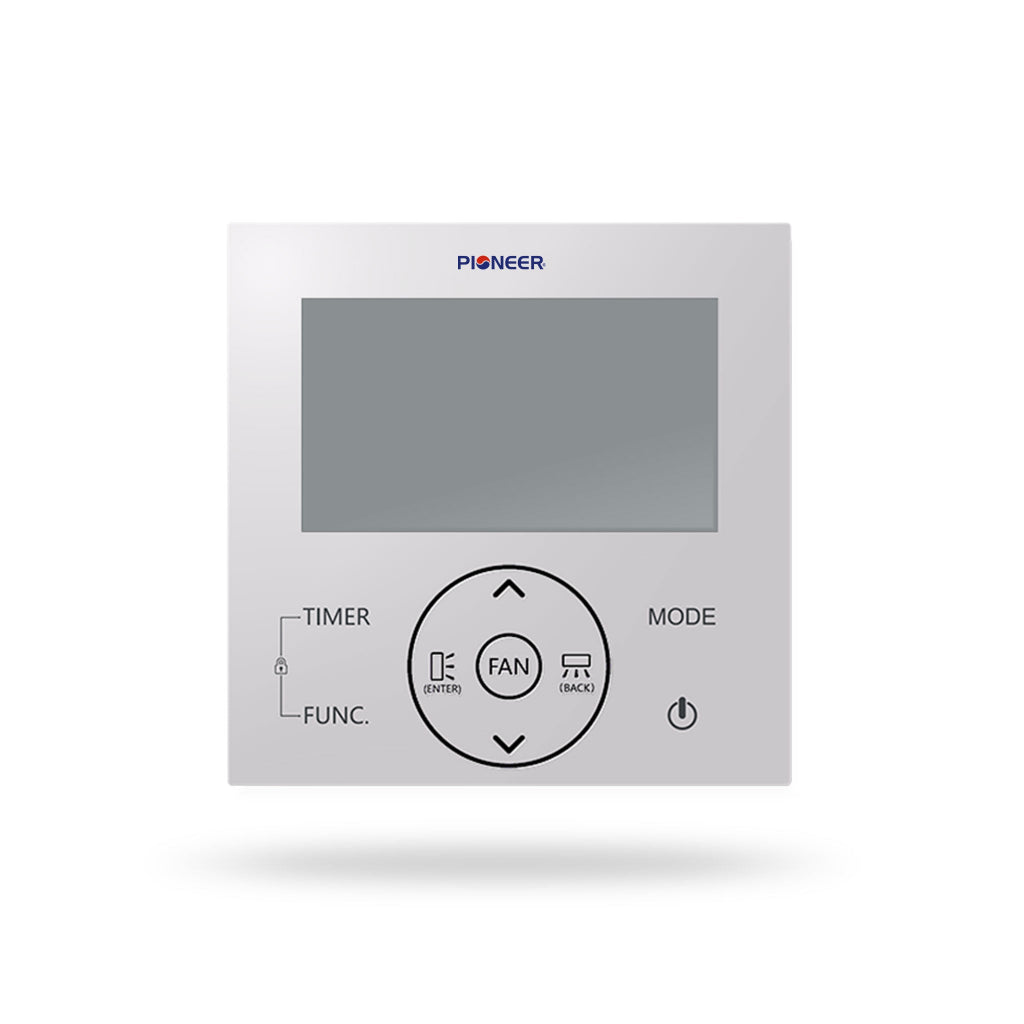

Smart Comfort Features
Integrated operating modes include:
- Cooling
- Heating
- Dry Mode
- Ventilation
- ECO Mode
- Sleep Mode
- Turbo Mode
- Self-Clean Cycle
- IFEEL Temperature Sensing
- Memory Recall Settings
These intelligent comfort features improve both efficiency and day-to-day usability.
Compact Low-Profile Installation
The slim concealed air handler measures only:
- 7-7/8" high
This compact profile allows installation within:
- ceiling cavities
- soffits
- concealed architectural spaces
making it especially valuable for modern compact floorplans and custom-designed interiors.
Ideal for Energy-Conscious Builds
The Quantum Ultra pairs exceptionally well with:
- solar power systems
- battery storage systems
- off-grid electrical setups
- high-efficiency home designs
Its inverter-driven operation helps reduce energy demand while maintaining stable indoor comfort.
Bottom Line
A compact high-efficiency concealed ducted heat pump system designed for tiny homes, ADUs, modern retreats, and architectural interiors where quiet operation, clean aesthetics, and year-round climate performance matter most.
